Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Steel yard ramps provide a dependable solution for loading and unloading trucks, trailers, and railcars directly from ground level when no loading dock is available. Designed for heavy-duty industrial use, these portable loading ramps allow forklifts to move freely between ground and trailer, increasing efficiency and reducing material handling costs. Built with rugged welded steel construction and finished in a durable coating, they are ideal for demanding environments such as construction sites, warehouses, and temporary loading areas.

Key Features & Benefits

Engineered for safety and performance, these forklift yard ramps feature open steel grating for positive traction in all weather conditions, allowing rain, snow, and debris to pass through. High steel side curbs help prevent forklift runoff, while safety locking chains and rubber bumpers secure the ramp firmly to trailers during use. A manual hand crank system enables easy height adjustment within a wide service range, ensuring compatibility with various trailer heights. Integrated tow bar pockets and heavy-duty steel wheels provide convenient mobility across job sites.

Applications

These portable loading ramps are ideal for facilities without fixed dock access, including construction projects, agricultural operations, distribution centers, and outdoor storage yards. They support efficient forklift loading of trucks and railcars, helping businesses maintain productivity in remote or temporary locations.

Configurations & Options

Available in multiple lengths, widths, and weight capacities, these yard ramps can be selected to match specific load requirements and equipment sizes. Options such as hydraulic or mechanical edge-of-dock levelers, guard rails, handrails, tow packages, and mobility enhancements provide added versatility. Stationary and portable configurations are available, making these ramps adaptable to a wide range of material handling applications.

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Details	Icons	Wt.
YR-DH	Factory Installed Lip Holes To Lag Yard Ramps To Top Of Dock	1 Year Limited Warranty	0

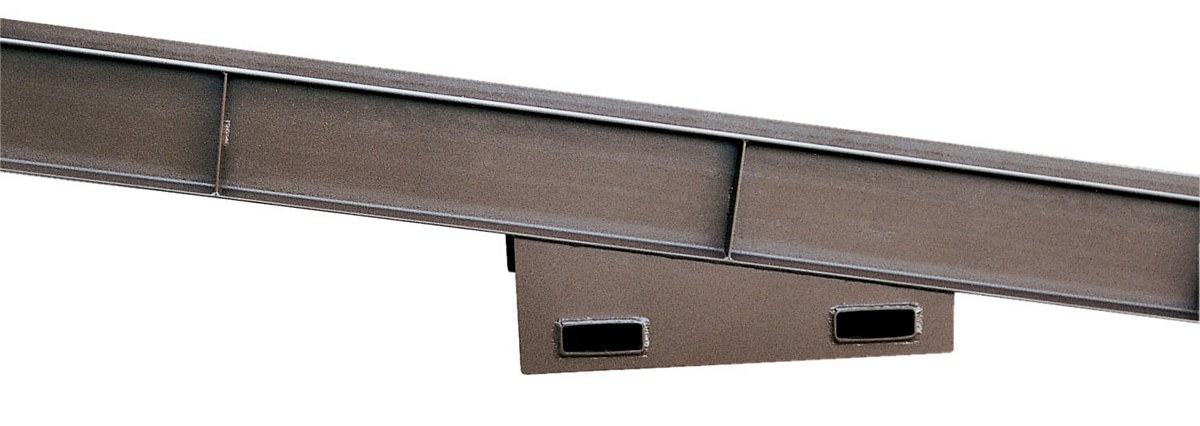

YR-FS	Factory Installed Fork Pickup Slots For Steel Yard Ramp Unit…	90 Days Limited Warranty	460

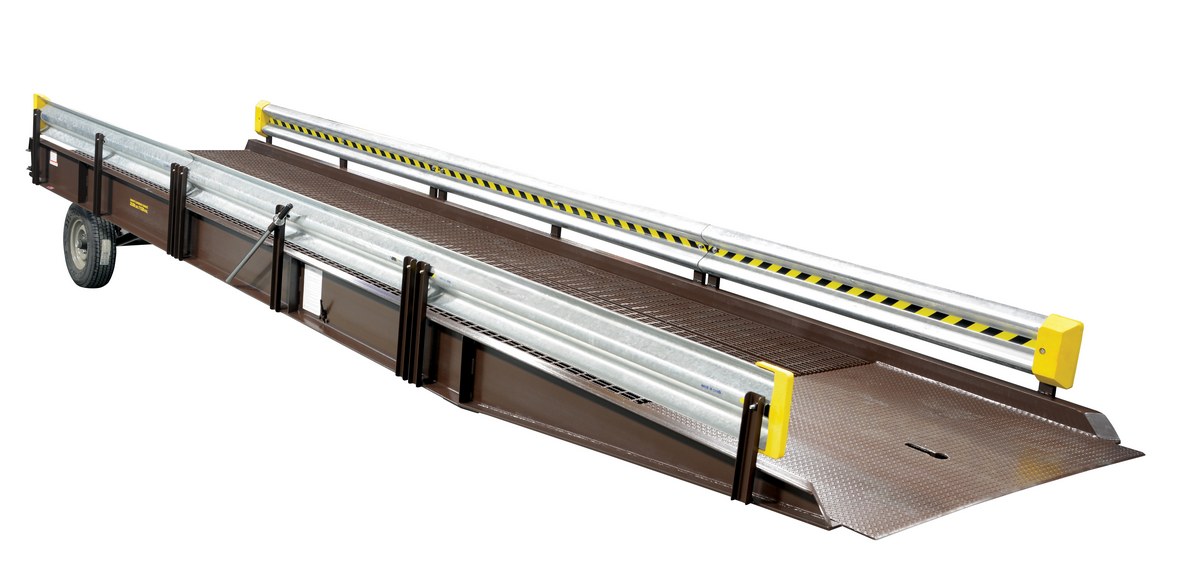

YR-GR-30	Factory Installed Guard Rail 30 Ft. Length For Steel Yard Ra…	90 Days Limited Warranty	456

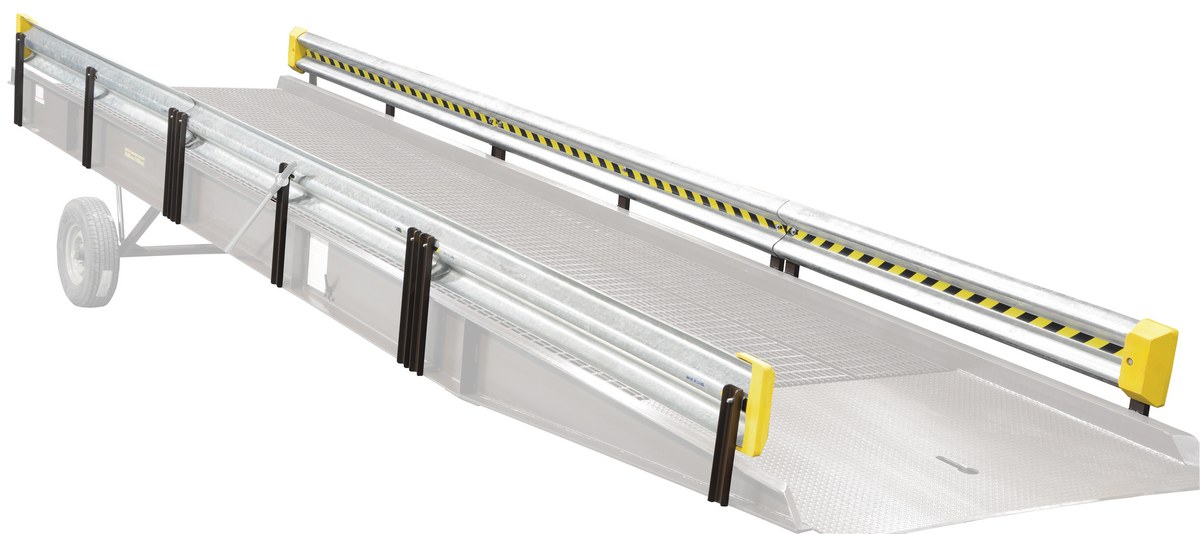

YR-GR-36	Factory Installed Guard Rail 36 Ft. Length For Steel Yard Ra…	90 Days Limited Warranty	550

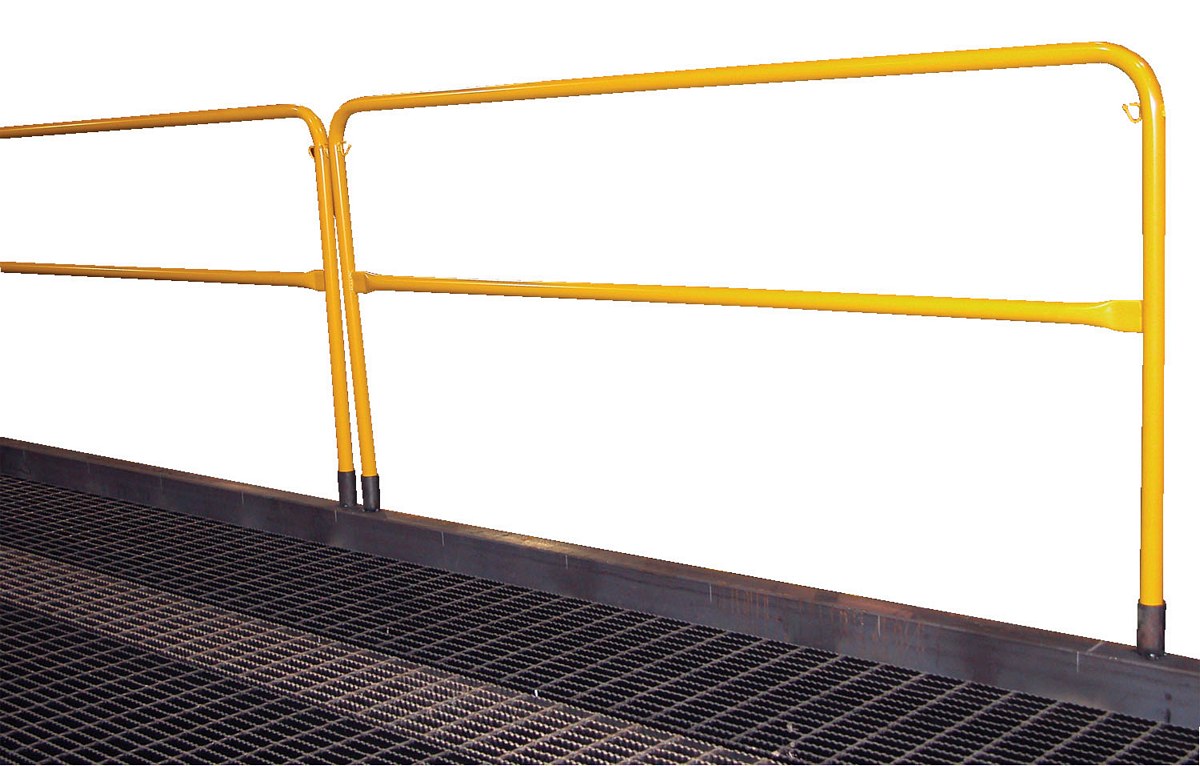

YR-HDRL	Factory Installed Steel Welded On Handrail 42 In. Height Yel…	90 Days Limited Warranty	12

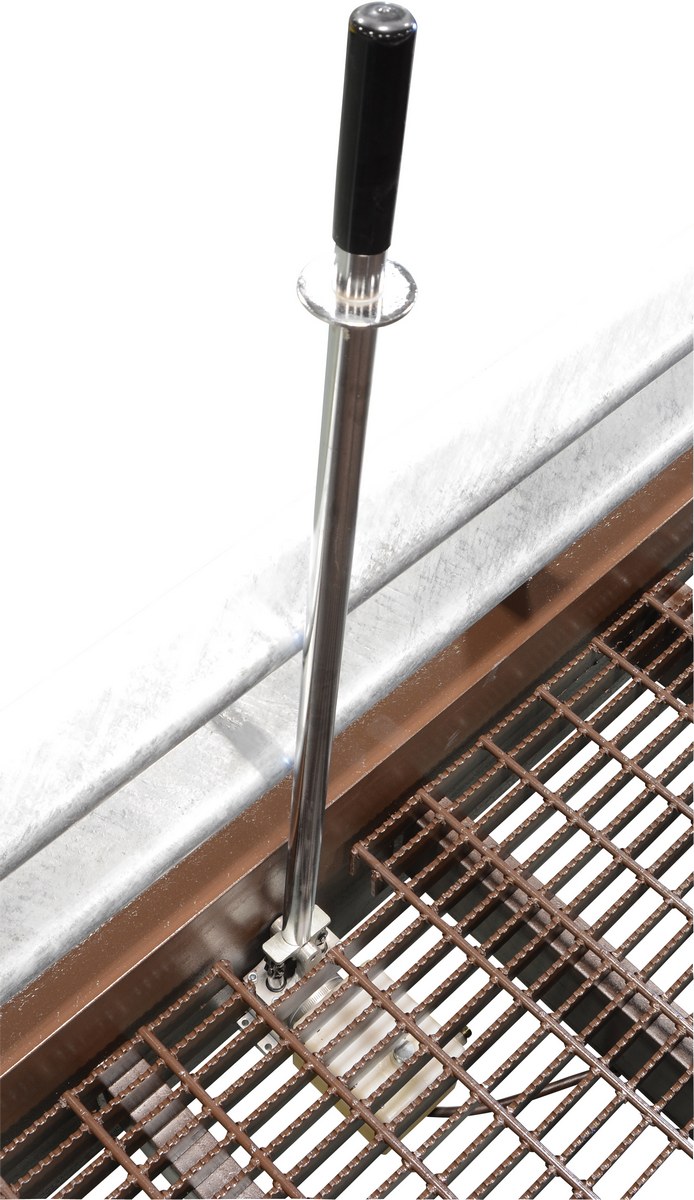

YR-HL	Factory Installed Pneumatic Tire & Manual Hydraulic Hand…	90 Days Limited Warranty	230
YR-HL-DC	Factory Installed Pneumatic Tire & 12 Volt DC Power Unit…	90 Days Limited Warranty	288

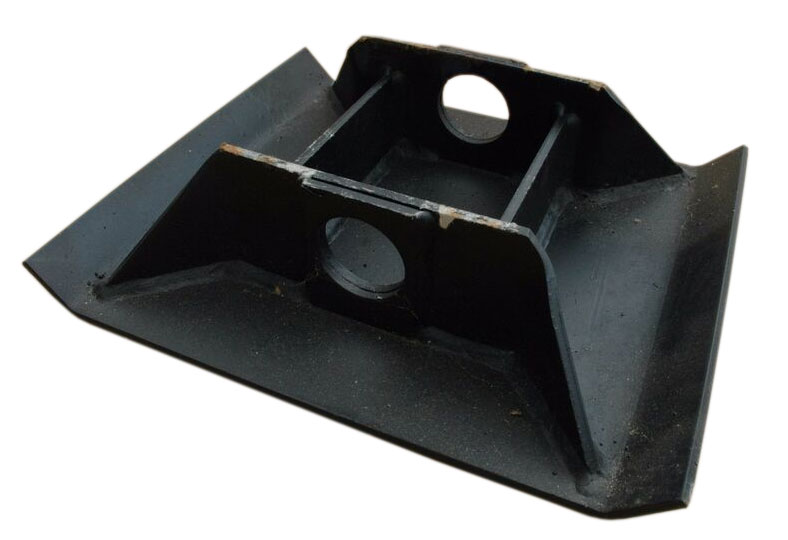

YR-PAD	Factory Installed Foot Pad For Landing Gear For Yard Ramps B…	90 Days Limited Warranty	15
YR-RAHDRL	Factory Installed Removable Aluminum Handrail 42 In. Yellow …	90 Days Limited Warranty	18
YR-RHDRL	Factory Installed Removable Steel Handrail 42 In. Yellow For…	90 Days Limited Warranty	18

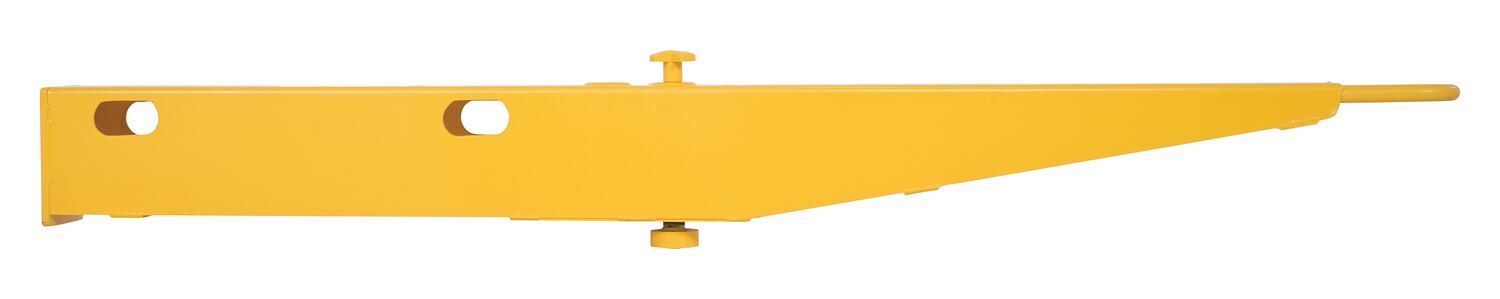

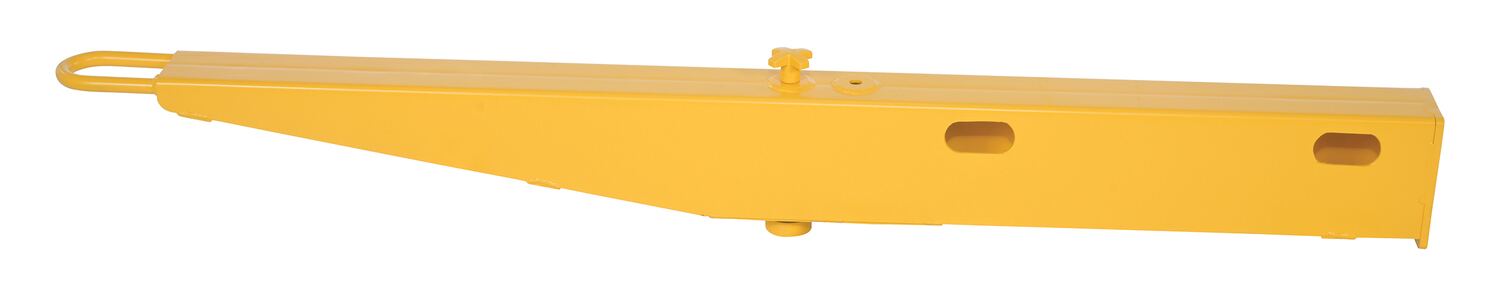

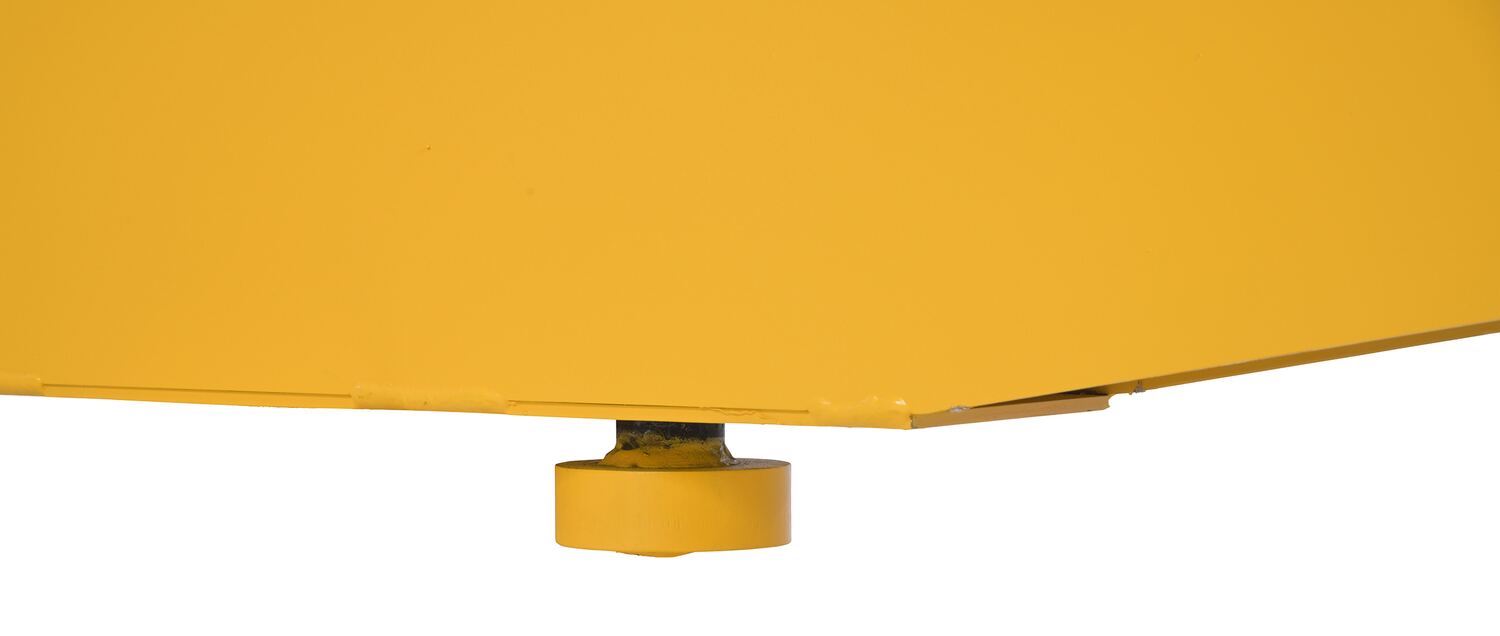

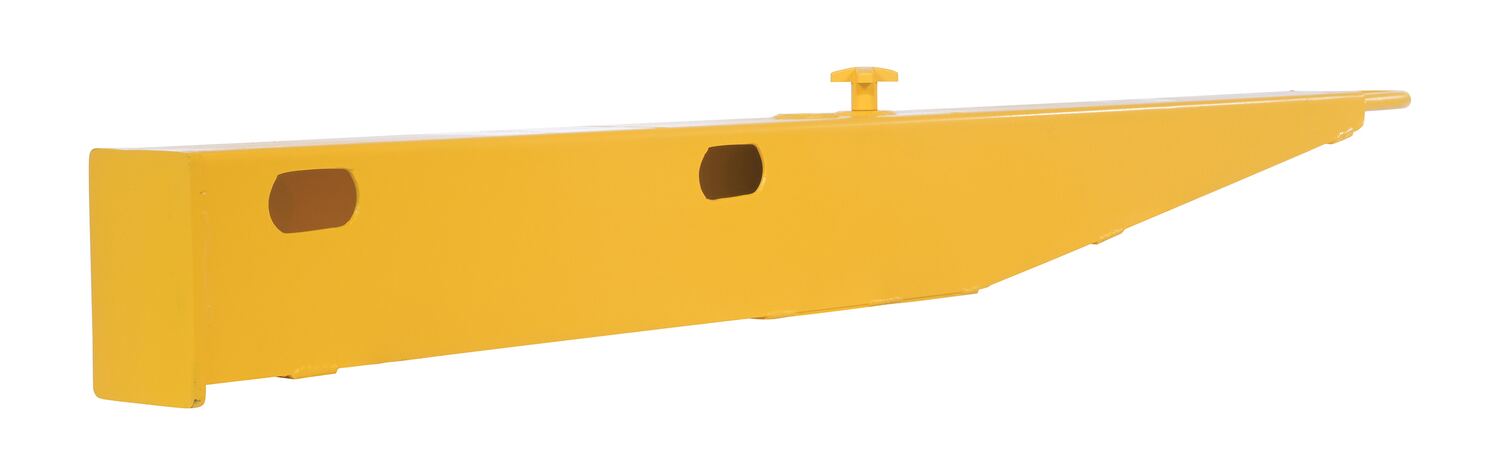

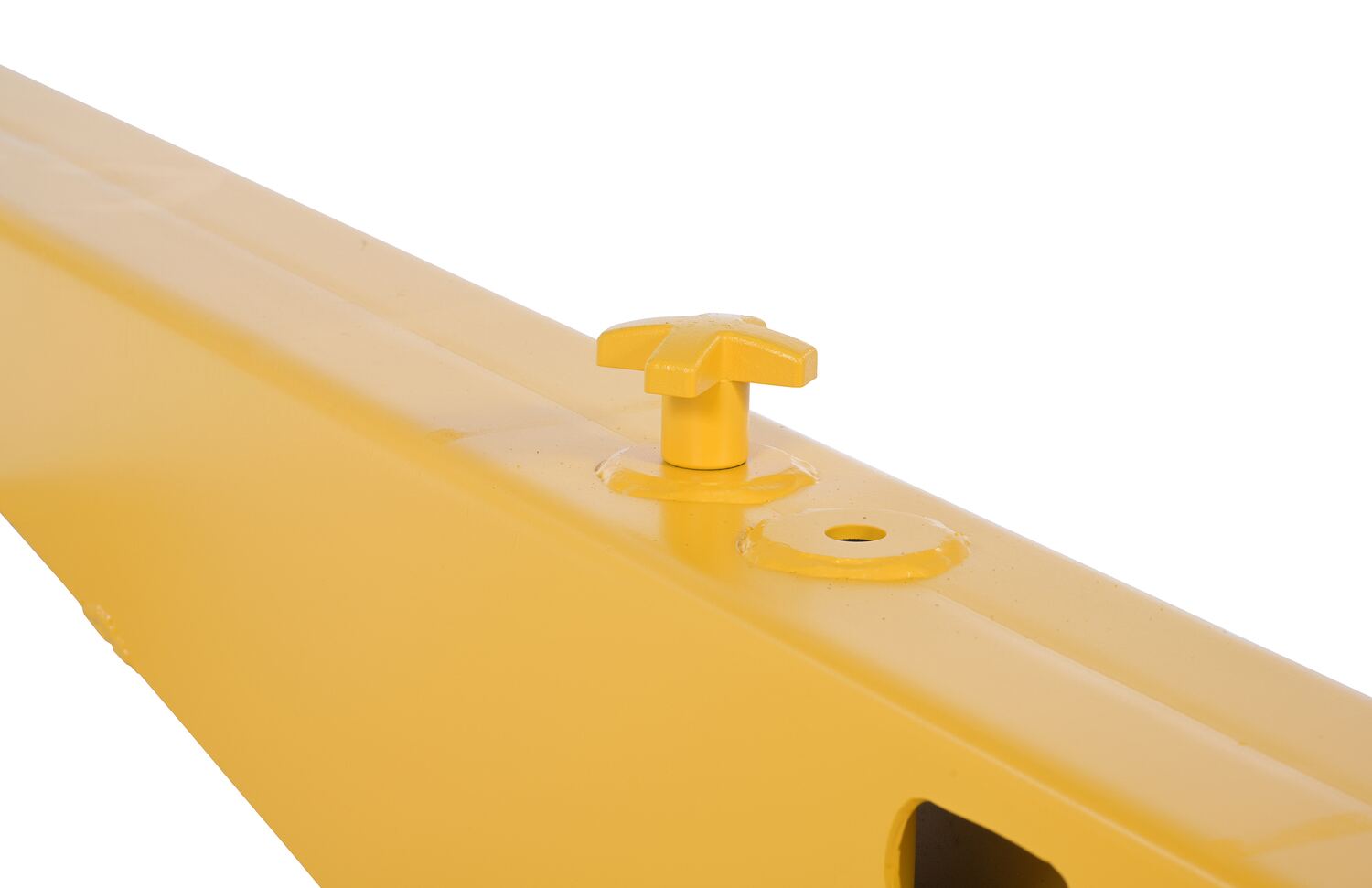

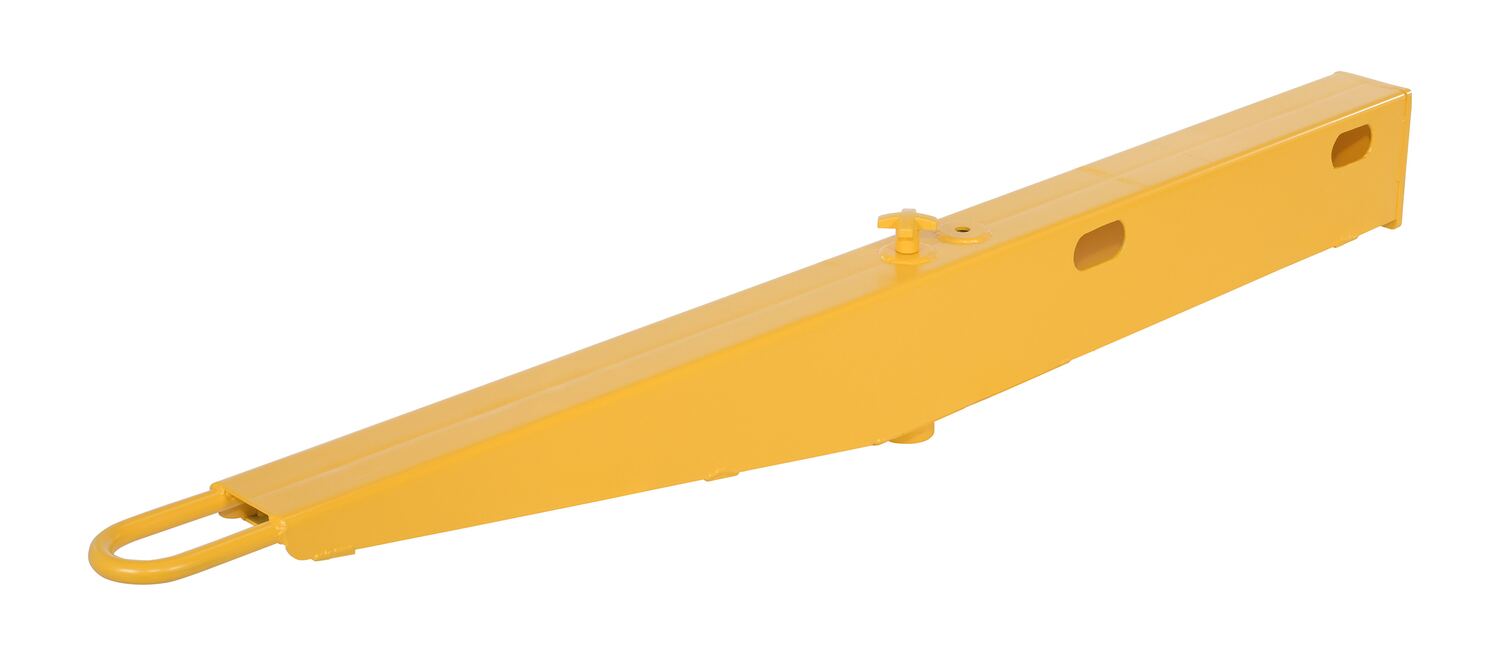

YR-TB-H	Factory Installed Steel Tow Bar Hitch For Yard Ramps Yellow	90 Days Limited Warranty	145

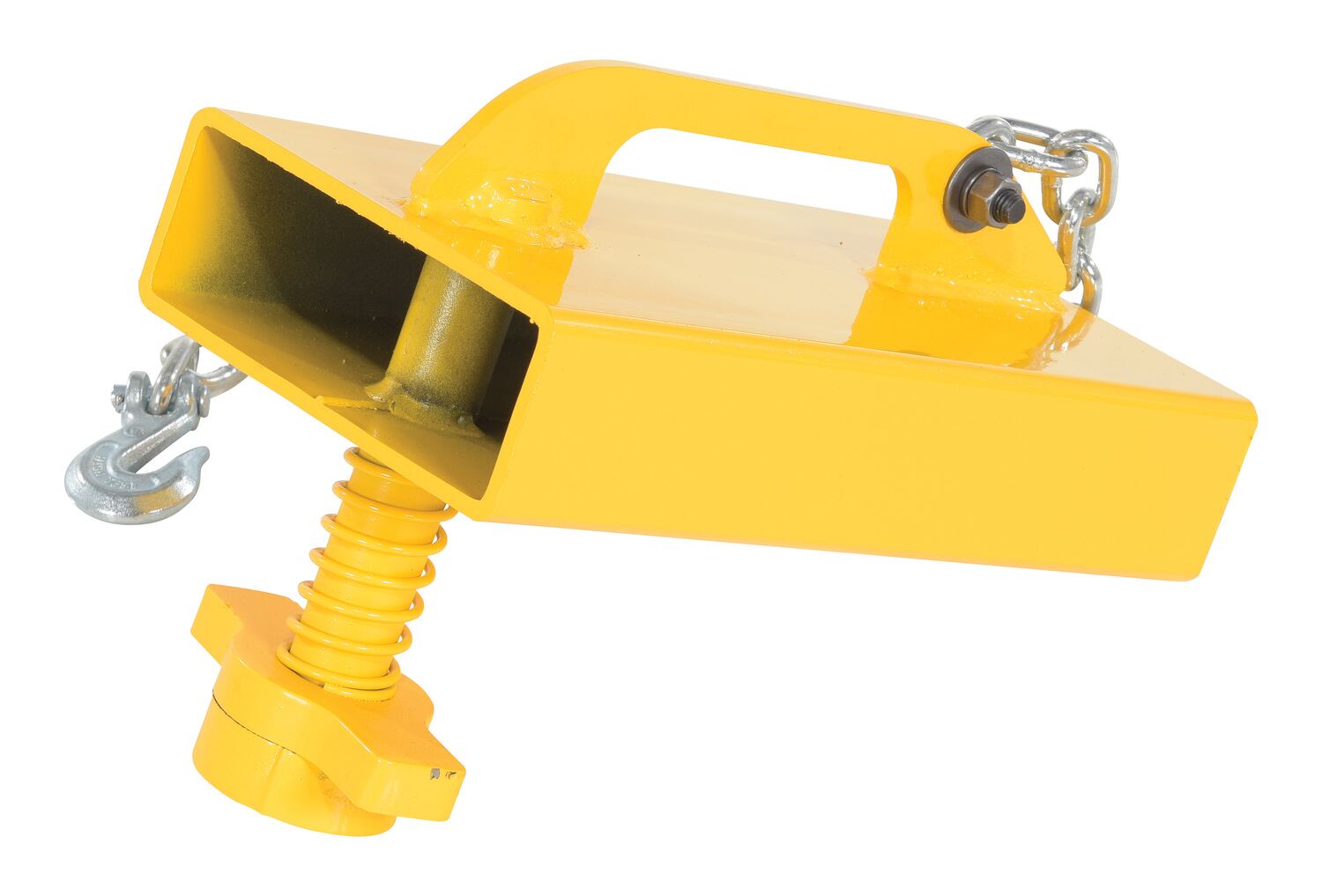

YR-TB-P	Steel Tow Bar Pocket 8 In. Width For Yard Ramps Yellow	90 Days Limited Warranty	35
YR-WH	Steel Wall Hooks To Secure Yard Ramps 6 In. x 6 In. x 1-3/16…	90 Days Limited Warranty	5

*YR-HL-DC Includes on-board charger

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Manuals

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

YR-16-7230

YR-16-7236

YR-16-8430

YR-16-8436

YR-20-7330

YR-20-7336

YR-20-8530

YR-20-8536

YR-25-7330

YR-25-7336

YR-25-8530

YR-25-8536

YR-30-7330

YR-30-7336

YR-30-8530

YR-30-8536

YR-TB-H

YR-TB-P

YR-WH

YRD-20-8536-H

Testing Certificates

YR-16-7230

YR-16-7236

YR-16-8430

YR-16-8436

YR-20-7330

YR-20-7336

YR-20-8530

YR-20-8536

YR-25-7330

YR-25-7336

YR-25-8530

YR-25-8536

YR-30-7330

YR-30-7336

YR-30-8530

YR-30-8536

YR-DH

YR-FS

YR-GR-30

YR-GR-36

YR-HDRL

YR-HL

YR-HL-DC

YR-RAHDRL

YR-RHDRL

YR-TB-H

YR-TB-P

YR-WH

YRD-16-7236-H

YRD-16-7236-M

YRD-16-8436-H

YRD-16-8436-M

YRD-20-7336-H

YRD-20-7336-M

YRD-20-8536-H

YRD-20-8536-M

YRD-25-7336-H

YRD-25-7336-M

YRD-25-8536-H

YRD-25-8536-M

YRD-30-7336-H

YRD-30-7336-M

YRD-30-8536-H

YRD-30-8536-M

YRDS-16-7236-H

YRDS-16-7236-M

YRDS-16-8536-H

YRDS-16-8536-M

YRDS-20-8536-H

YRDS-20-8536-M

SDS Sheets

Hydraulic Oil
YRD-16-7236-H SDS

Hydraulic Oil
YRD-16-7236-M SDS

Hydraulic Oil
YRD-16-8436-H SDS

Hydraulic Oil
YRD-16-8436-M SDS

Hydraulic Oil
YRD-20-7336-H SDS

Hydraulic Oil
YRD-20-7336-M SDS

Hydraulic Oil
YRD-20-8536-H SDS

Hydraulic Oil
YRD-20-8536-M SDS

Hydraulic Oil
YRD-25-7336-H SDS

Hydraulic Oil
YRD-25-7336-M SDS

Hydraulic Oil
YRD-25-8536-H SDS

Hydraulic Oil
YRD-25-8536-M SDS

Hydraulic Oil
YRD-30-7336-H SDS

Hydraulic Oil
YRD-30-7336-M SDS

Hydraulic Oil
YRD-30-8536-H SDS

Hydraulic Oil
YRD-30-8536-M SDS

Hydraulic Oil
YRDS-16-7236-H SDS

Hydraulic Oil
YRDS-16-7236-M SDS

Hydraulic Oil
YRDS-16-8536-H SDS

Hydraulic Oil
YRDS-16-8536-M SDS

Hydraulic Oil
YRDS-20-8536-H SDS

Hydraulic Oil
YRDS-20-8536-M SDS

Hydraulic Oil
YR-HL SDS

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid
YR-HL-DC SDS

Hydraulic Oil
YR-HL-DC SDS

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Key Features & Benefits

Applications

Configurations & Options

Model #

Description

Attributes

Net Wt.
(lbs)

YR-16-7230

Steel Overlap Yard Ramp 72 In. x 30 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Overall Ramp Width (in.): 72

4625

YR-16-7236

Steel Overlap Yard Ramp 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Overall Ramp Width (in.): 72

5925

YR-16-8430

Steel Overlap Yard Ramp 84 In. x 30 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Overall Ramp Width (in.): 84

5375

YR-16-8436

Steel Overlap Yard Ramp 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Overall Ramp Width (in.): 84

6250

YR-20-7330

Steel Overlap Yard Ramp 73 In. x 30 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Overall Ramp Width (in.): 73

5275

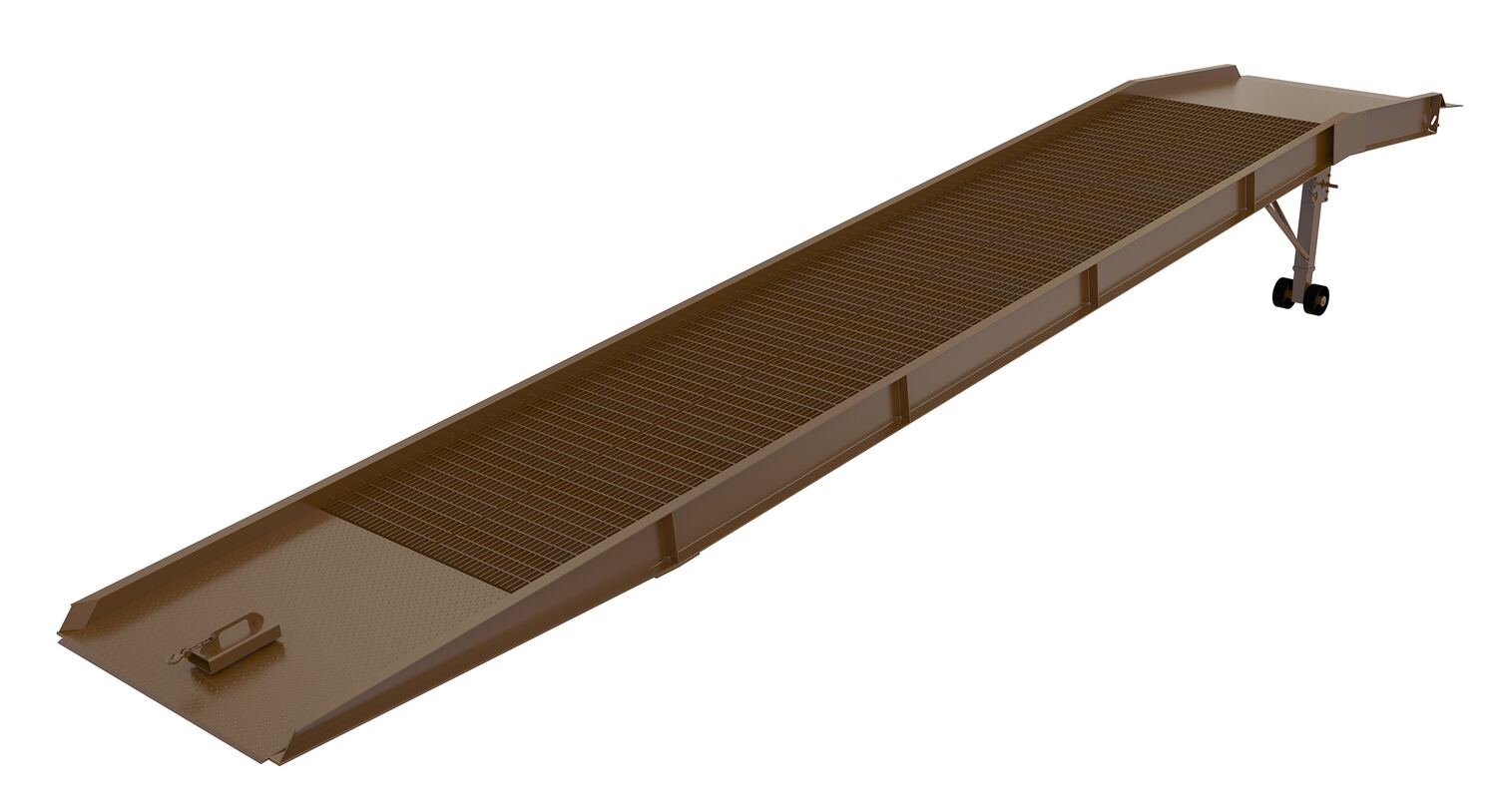

YR-20-7336

Steel Overlap Yard Ramp 73 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Overall Ramp Width (in.): 73

6275

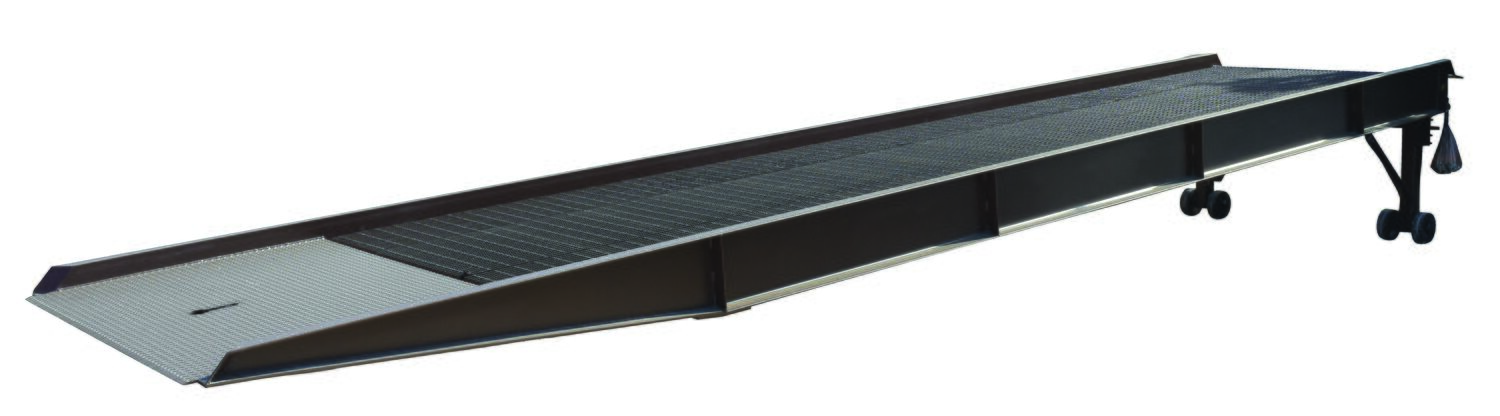

YR-20-8530

Steel Overlap Yard Ramp 85 In. x 30 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Overall Ramp Width (in.): 85

5852

YR-20-8536

Steel Overlap Yard Ramp 85 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Overall Ramp Width (in.): 85

6975

YR-25-7330

Steel Overlap Yard Ramp 73 In. x 30 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Overall Ramp Width (in.): 73

5450

YR-25-7336

Steel Overlap Yard Ramp 73 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Overall Ramp Width (in.): 73

6475

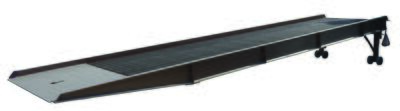

YR-25-8530

Steel Overlap Yard Ramp 85 In. x 30 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Overall Ramp Width (in.): 85

6000

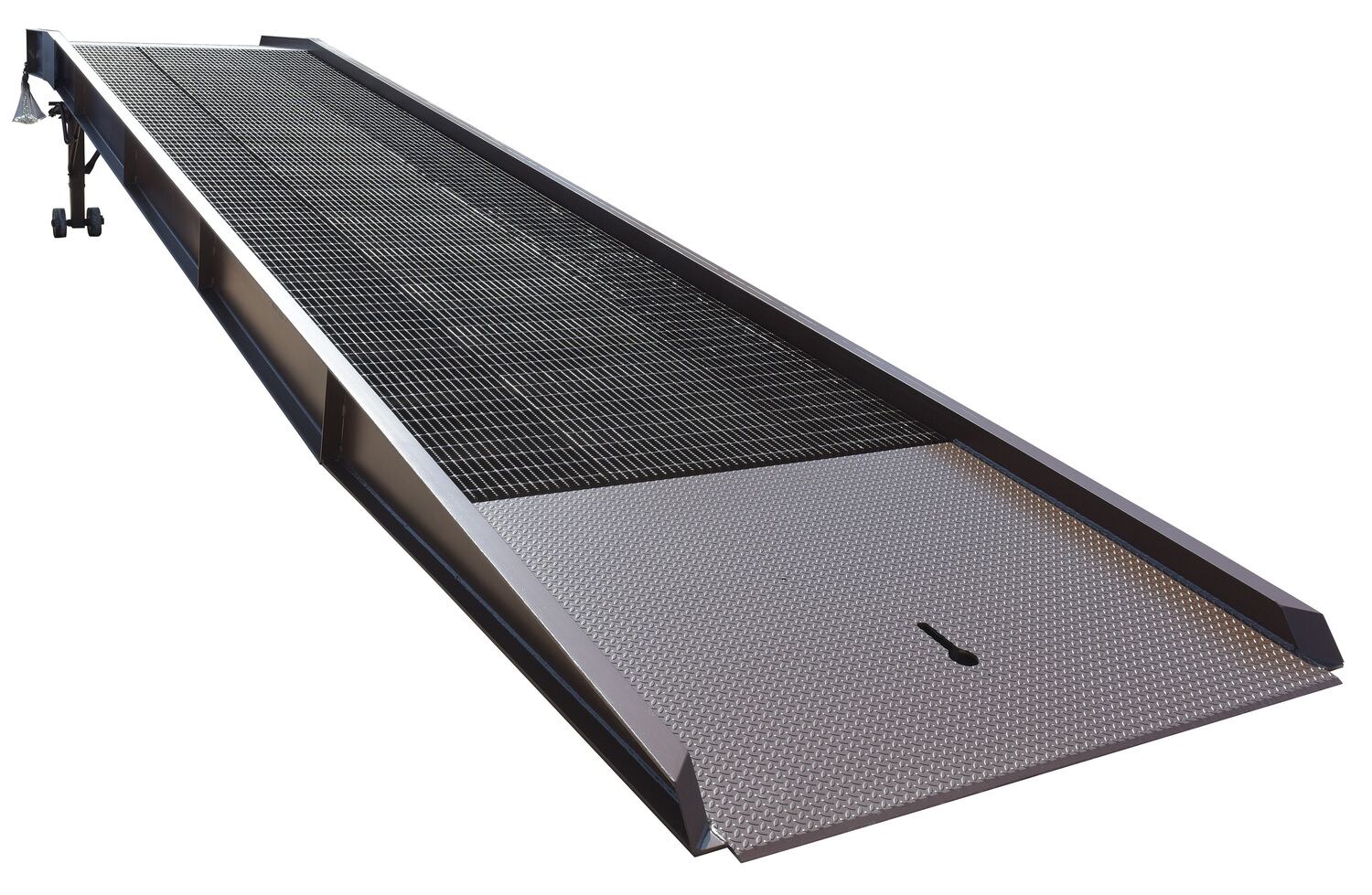

YR-25-8536

Steel Overlap Yard Ramp 85 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Overall Ramp Width (in.): 85

7175

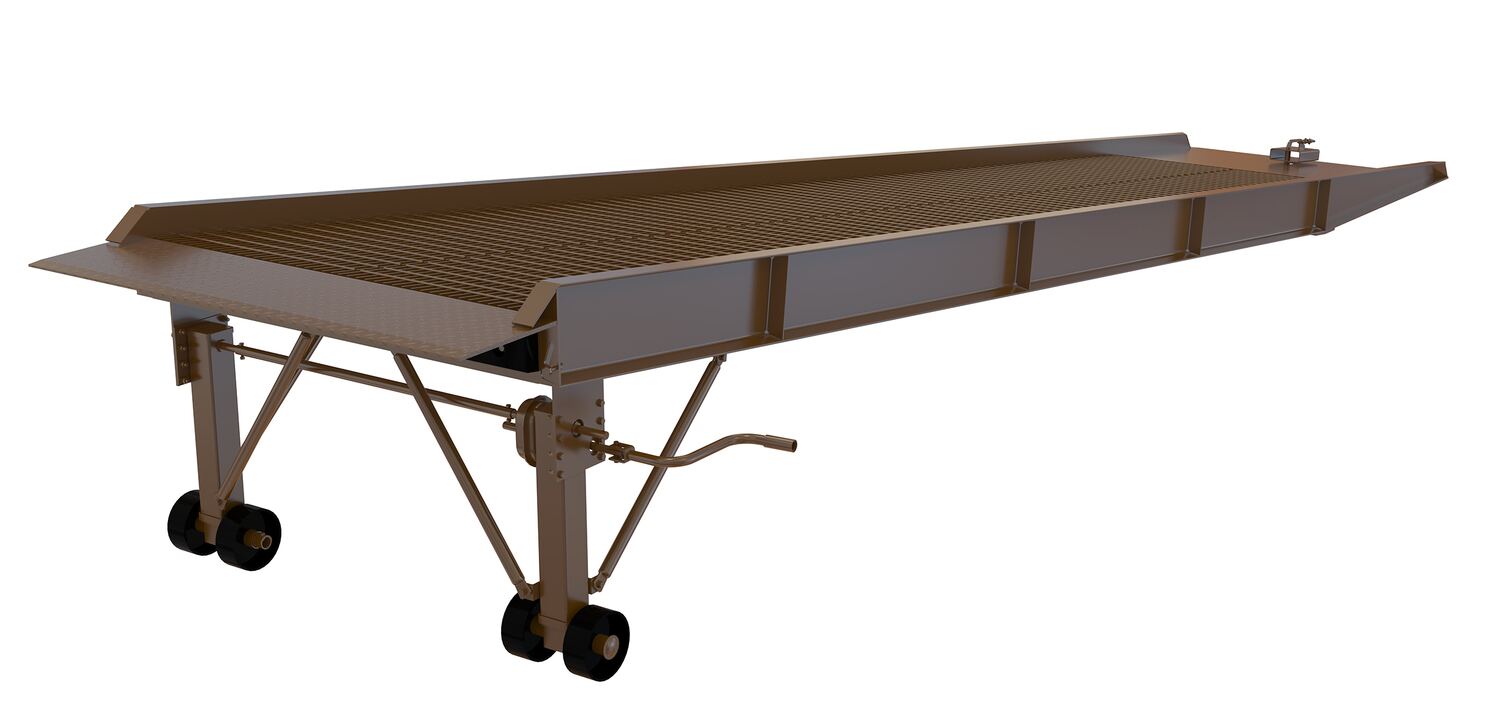

YR-30-7330

Steel Overlap Yard Ramp 73 In. x 30 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Overall Ramp Width (in.): 73

5600

YR-30-7336

Steel Overlap Yard Ramp 73 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Overall Ramp Width (in.): 73

6650

YR-30-8530

Steel Overlap Yard Ramp 85 In. x 30 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Overall Ramp Width (in.): 85

6175

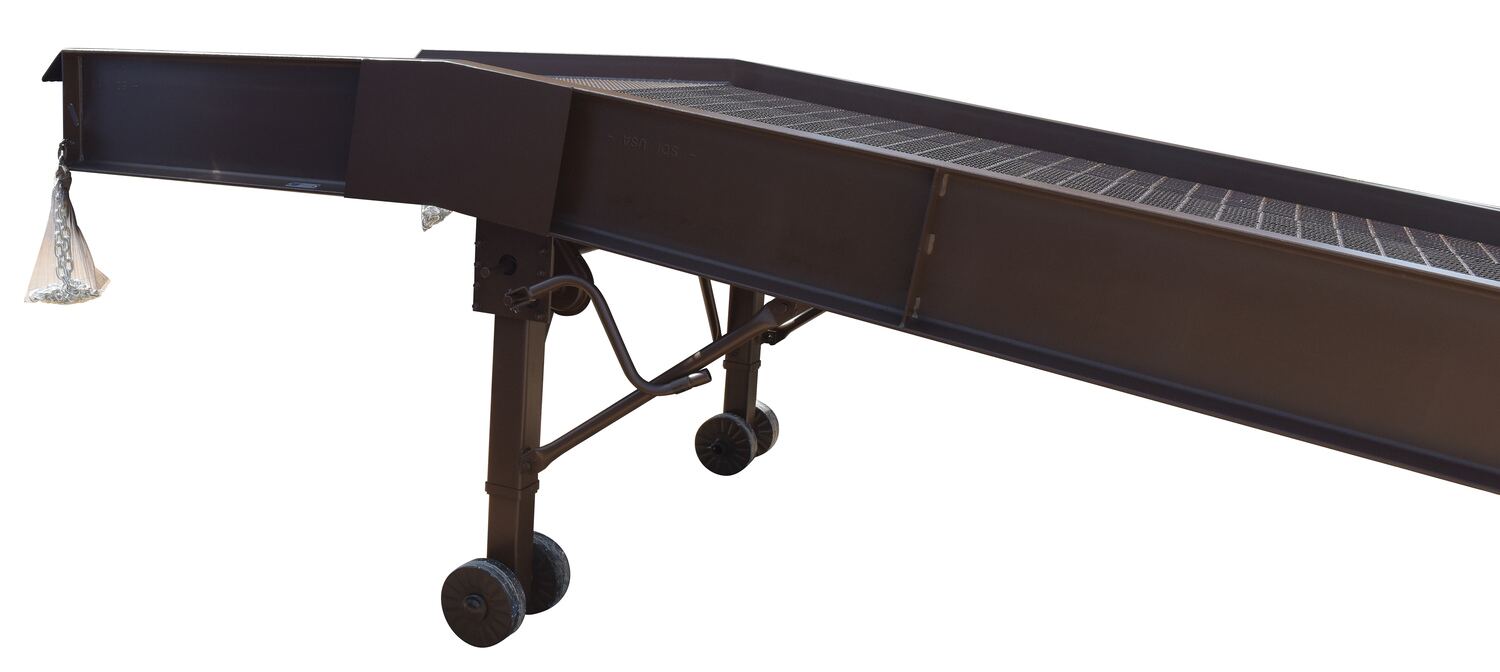

YR-30-8536

Steel Overlap Yard Ramp 85 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Overall Ramp Width (in.): 85

7350

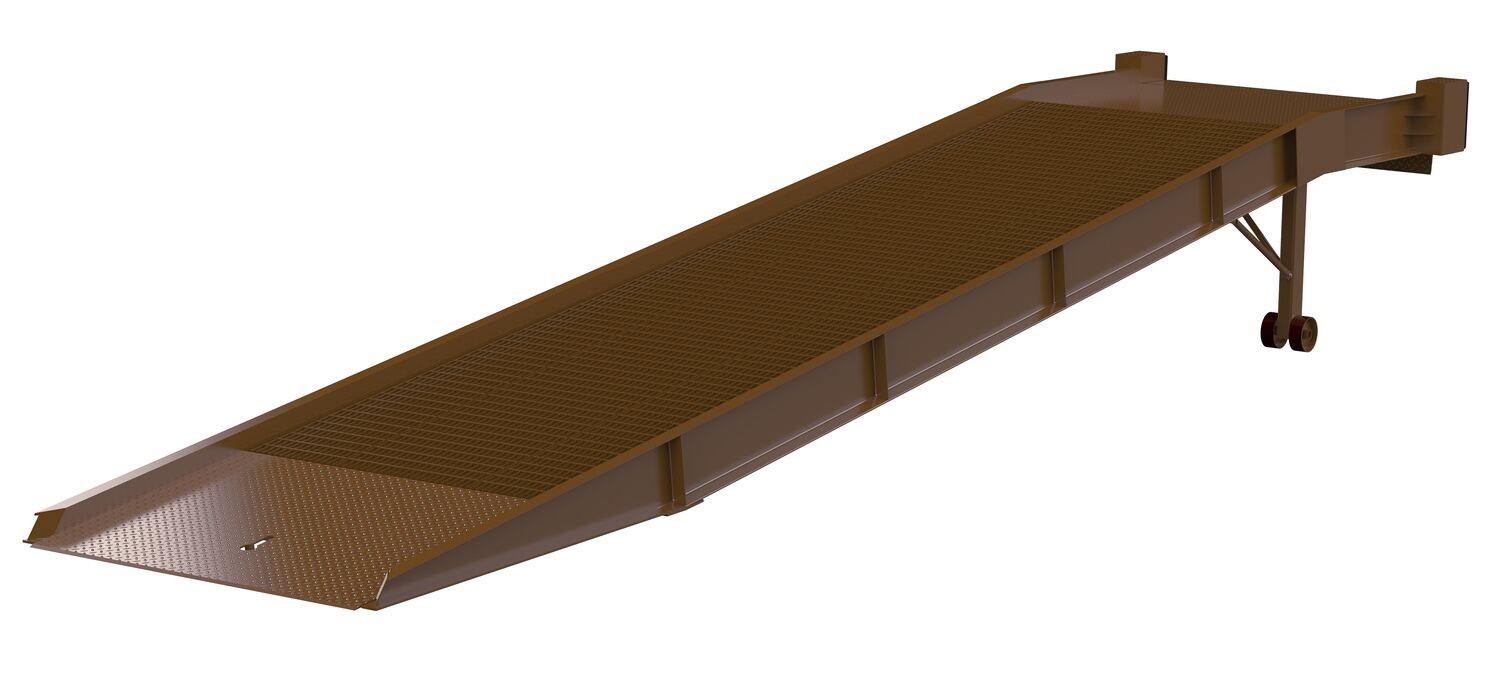

YRD-16-7236-H

Steel Yard Ramp Hydraulic Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 66

6495

YRD-16-7236-M

Steel Yard Ramp Mechanical Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 66

6495

YRD-16-8436-H

Steel Yard Ramp Hydraulic Dock Leveler 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 78

6775

YRD-16-8436-M

Steel Yard Ramp Mechanical Dock Leveler 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 78

6775

YRD-20-7336-H

Steel Yard Ramp Hydraulic Dock Leveler 73 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 66

6800

YRD-20-7336-M

Steel Yard Ramp Mechanical Dock Leveler 73 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 66

6800

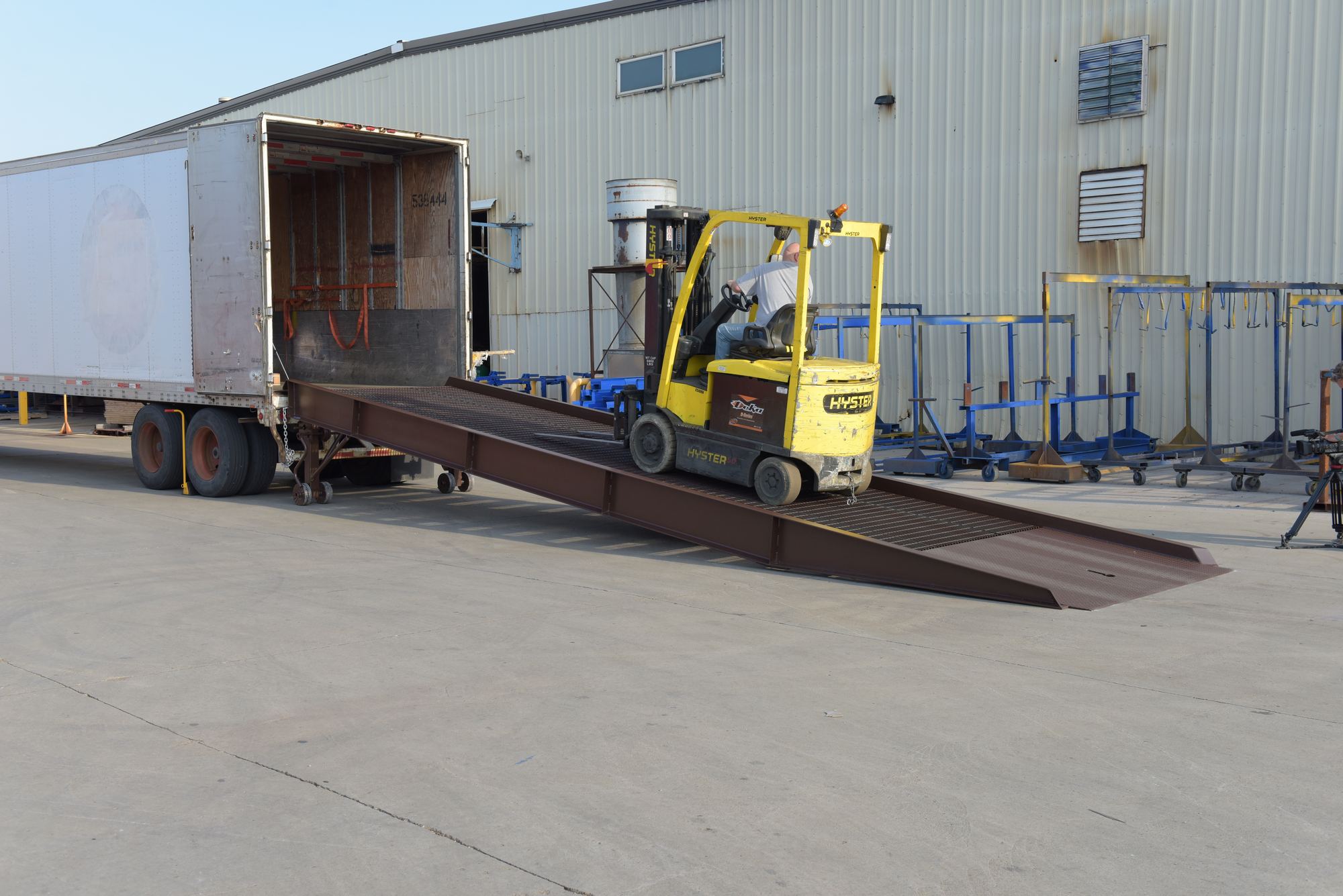

YRD-20-8536-H

Steel Yard Ramp Hydraulic Dock Leveler 85 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 78

7500

YRD-20-8536-M

Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 78

7500

YRD-25-7336-H

Steel Yard Ramp Hydraulic Dock Leveler 73 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Usable Ramp Width (in.): 66

7000

YRD-25-7336-M

Steel Yard Ramp Mechanical Dock Leveler 73 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Usable Ramp Width (in.): 66

7000

YRD-25-8536-H

Steel Yard Ramp Hydraulic Dock Leveler 85 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Usable Ramp Width (in.): 78

7700

YRD-25-8536-M

Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 25,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 25,000
Usable Ramp Width (in.): 78

7700

YRD-30-7336-H

Steel Yard Ramp Hydraulic Dock Leveler 73 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Usable Ramp Width (in.): 66

7175

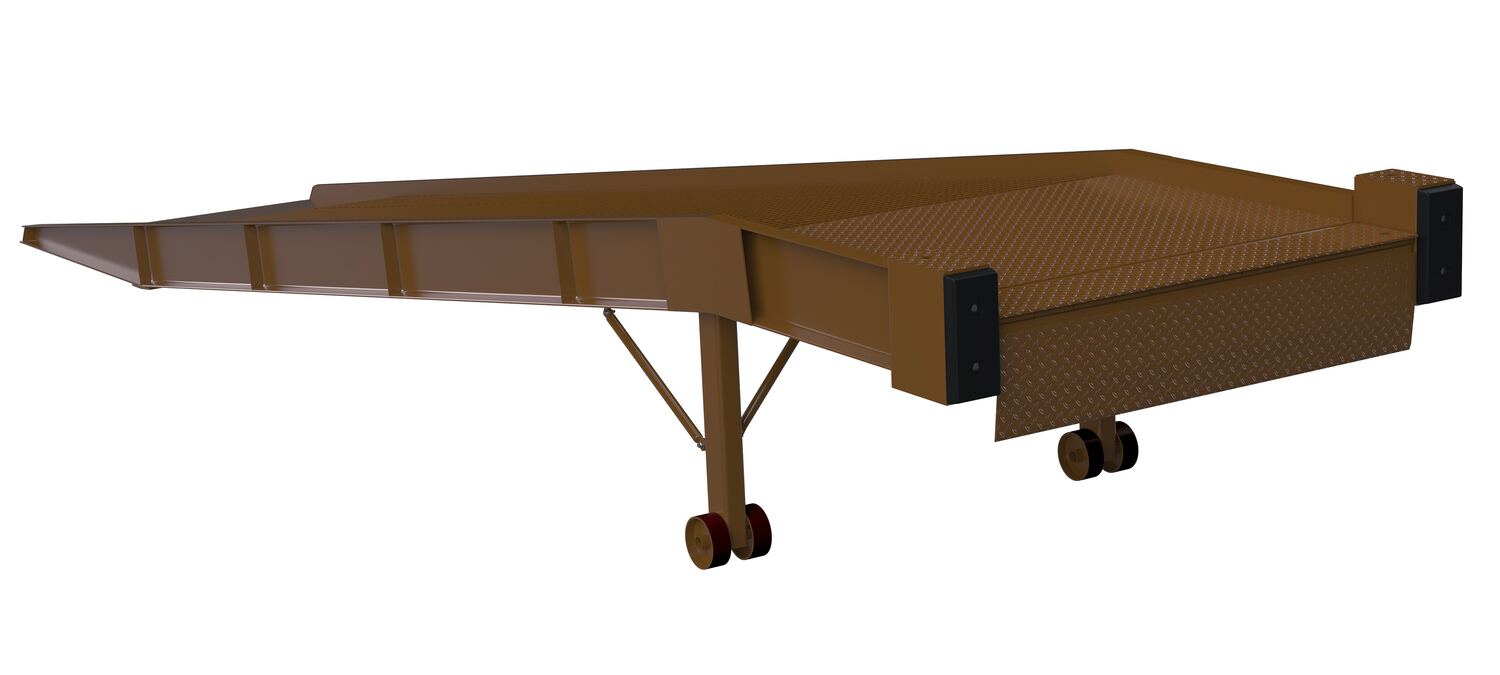

YRD-30-7336-M

Steel Yard Ramp Mechanical Dock Leveler 73 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Usable Ramp Width (in.): 66

7175

YRD-30-8536-H

Steel Yard Ramp Hydraulic Dock Leveler 85 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Usable Ramp Width (in.): 78

7875

YRD-30-8536-M

Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 30,000
Usable Ramp Width (in.): 78

7875

YRDS-16-7236-H

Steel Yard Ramp Hydraulic Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 66

6275

YRDS-16-7236-M

Steel Yard Ramp Mechanical Dock Leveler 72 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 66

6275

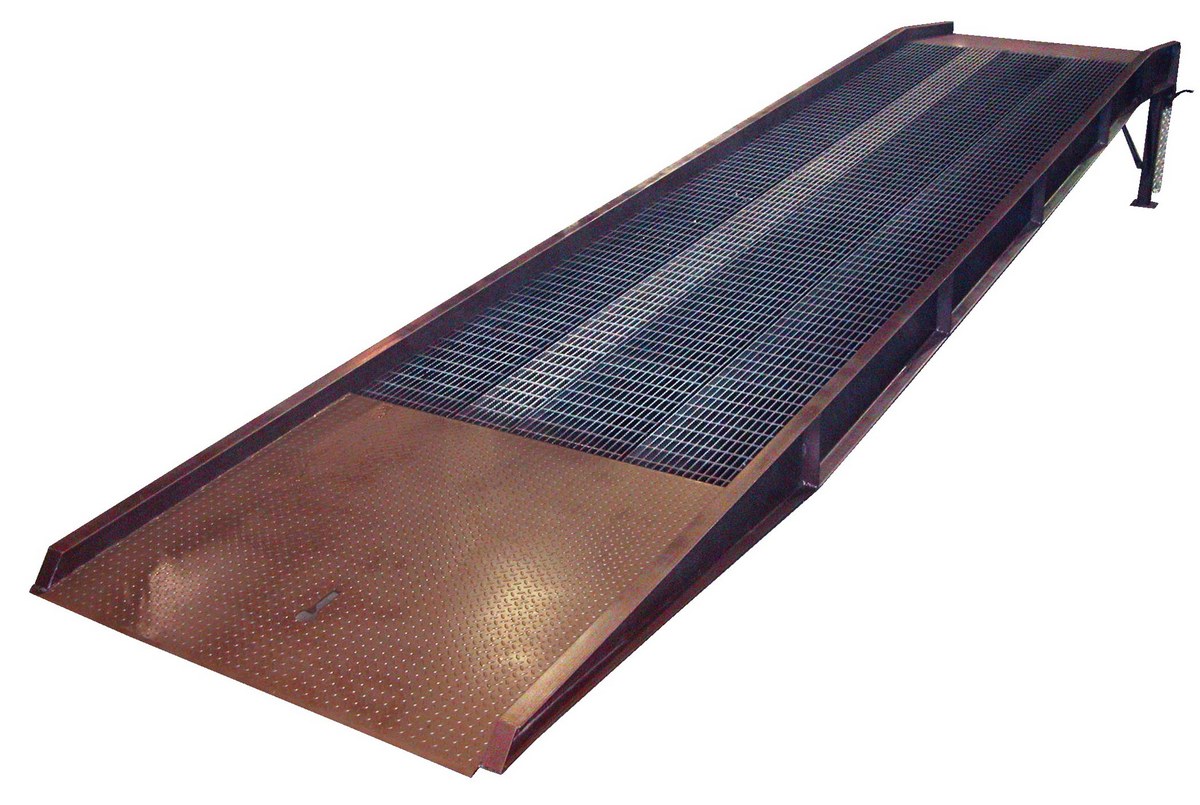

YRDS-16-8536-H

Steel Yard Ramp Hydraulic Dock Leveler 85 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 78

6600

YRDS-16-8536-M

Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 78

6600

YRDS-20-8536-H

Steel Yard Ramp Hydraulic Dock Leveler 85 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 78

7325

YRDS-20-8536-M

Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 20,000 lb. Capacity Earth Tone Brown

Uniform Capacity (lb.): 20,000
Usable Ramp Width (in.): 78

7325

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Steel Yard Ramps

Steel Yard Ramps

Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Key Features & Benefits

Applications

Configurations & Options

Steel Yard Ramps

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Engineering Drawings

Testing Certificates

SDS Sheets

Other PDFs

Related or Similar Products:

Steel Yard Ramps

Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Key Features & Benefits

Applications

Configurations & Options

Options

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

Steel Yard Ramps

Steel Yard Ramps

Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Key Features & Benefits

Applications

Configurations & Options

Steel Yard Ramps

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Engineering Drawings

Testing Certificates

SDS Sheets

Other PDFs

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Premium Truck Scissor Dock Lifts

Aluminum Yard Ramps

Docklevelers

Dockplates & Dockboards

Wheel Risers

Mini Yard Ramps

Steel Yard Ramps

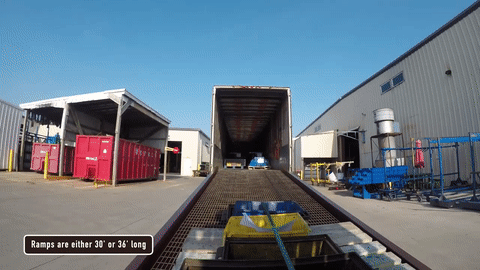

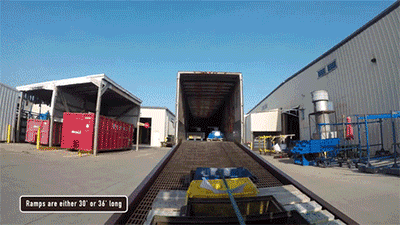

Portable Steel Yard Ramps for Forklift Ground-to-Trailer Loading

Key Features & Benefits

Applications

Configurations & Options

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
